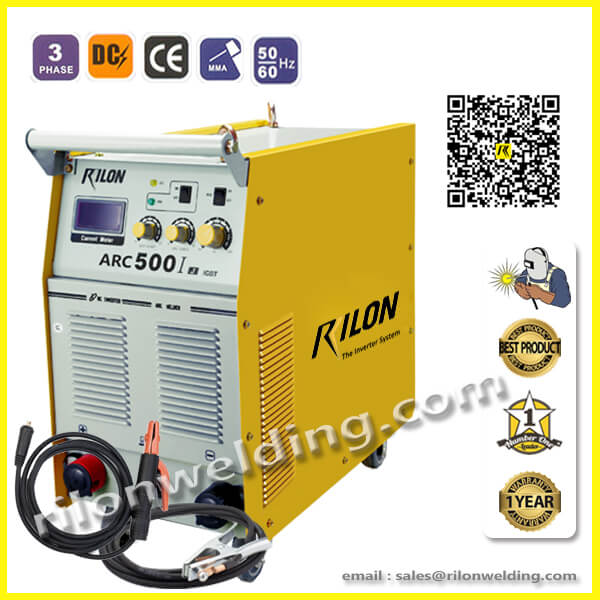

ARC 500 IGBT Modular

ARC 500 IGBT Modular


Instantly view on mobile scan this picture

ARC 500 IGBT Modular


Description:

Reliable,Rugged,Heavy Duty Industrial Professional Choice.

  • IGBT technology,the core adopts advanced IGBT inverter device.
  • Wide range for input voltage:380V±15%.
  • Digital meter to preset and display welding current.
  • Dust-Free Cooling Systerm with Upgraded Duty Cycle.
  • ARC force and Hot start adjustable, easy to striking the arc.
  • VRD function,it safe for welders.
  • Auto-Protection against over-voltage, over-current and over-heated.
  • Remote control function(optional),large your welding Area,easy to operate.
  • Energy Saving - More efficient compared with the traditional SCR machine.
Parameters Specification
Rated Input Voltage(V)AC380V±15% 3P
Efficiency(%)85
Rated Input Current(A)38.4
Power Factor0.93
Input Frequency(HZ)50/60
Protection GradeIP21
Rated Input Power(KVA)15.3
Weight(kg)40
Current Range(A)50-500
Electrode Diameter(mm)3.2-5.0
Open Circuit Voltage(V)68
Dimension(mm)515*262*468
Duty cycle at maximum current40%@40

Standard Accessories:

  • ARC Holder With Cable
  • Earth Clamp With Cable

Electrode Capacity

ElectrodesTickness (mm)Additional Information
Stainless Steel, Mild Steel2.5 mm - 5.0 mm Continuous Welding,
Gouging use
